Tow Ball Download Range: 380kg - 544kg

NB: Off-Road / Universal style couplings are not compatible with Milford Weight Distribution Hitches due to couplings approach/departure interference with weight distribution head plate.

778708 - Replacement Locking Pin Kit for WDH Spring Bar.
Max capacity without spring bars - Ball 435kgs, Trailer 4350kgs.


CountryMakeModelChassisSeriesYearKWLytCylDrive TypeBody TypeFuel TypeEngineKtypeNr

Ultimate Load Management

Superior Design

HiLoad / Max Lift design promotes full weight distribution

Parallel Mounted, the straight bar design results in maximum clearance and ‘Hassle Free’ reversing

Rapid adjustment with super safe, easy to lock chain lift brackets and soft grip handle.

Standard fit grease nipples to ensure quiet operation and reduced noise.

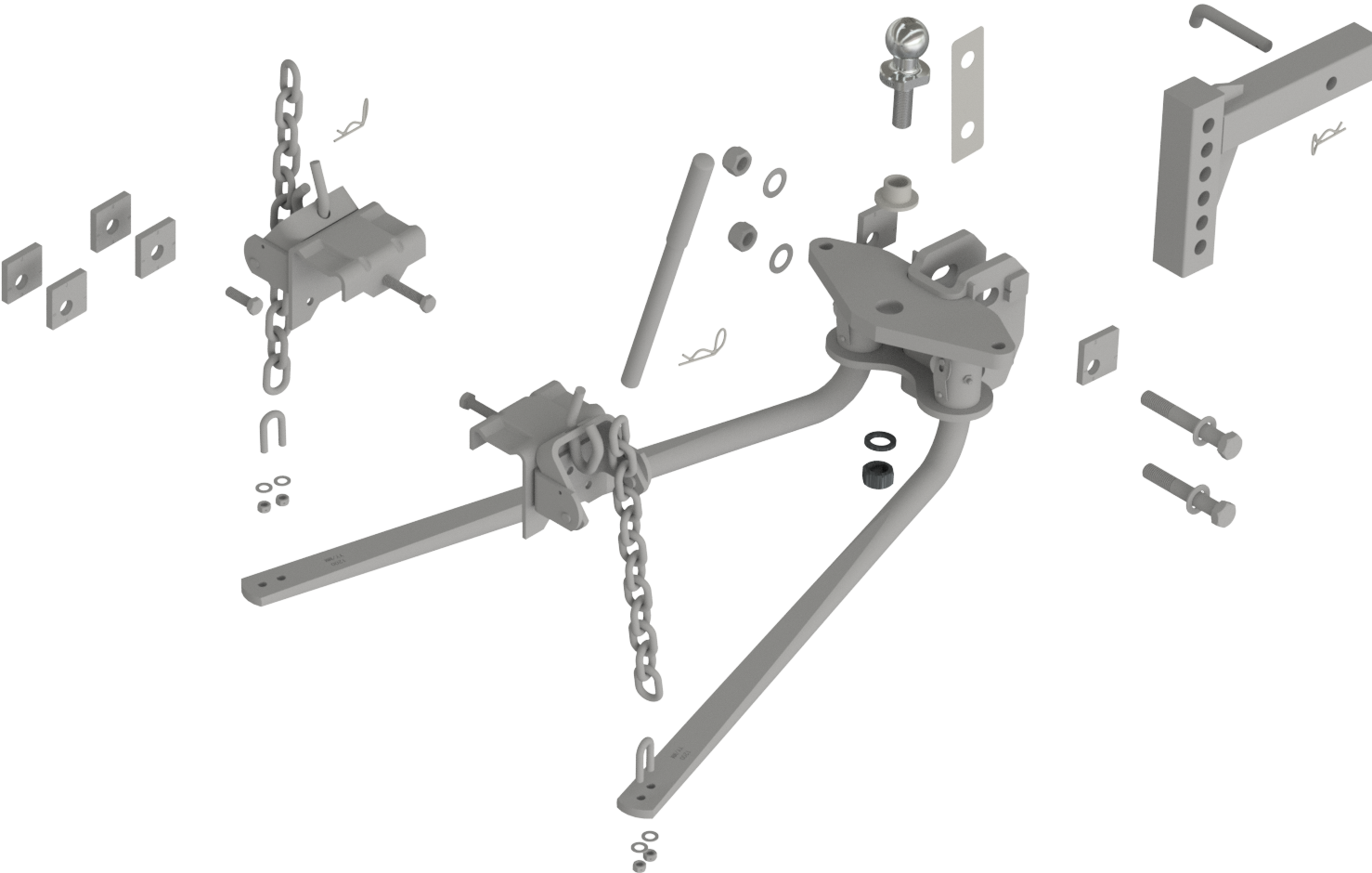

Comes fully assembled for rapid mount installation.

Australian Standard 50mm 3500KG Towball included (600lb & 800lb).

Rugged Powder Coat Finish

Covered by Milford’s Lifetime Warranty*

*T&C’s Apply

All images are for illustrative purposes only and are included only as a guide to basic style. Actual product supplied may therefore differ in design and detail.

SKU 909929
Brand Milford
Name Weight Distribution Hitch 544kg/1200lb
Shipping Weight 37.5000kg
Shipping Width 0.240m
Shipping Height 0.850m
Shipping Length 0.375m
Shipping Cubic 0.076500000m3
Unit Of Measure EACH
